- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21631

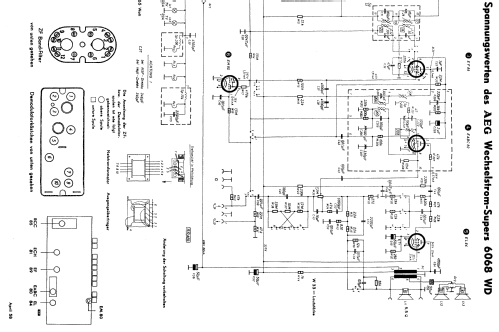

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6068WD - AEG Radios Allg.Elektricitäts-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 370 x 250 mm / 23.2 x 14.6 x 9.8 inch
- Notes
-
Parallelgerät zum Telefunken Operette 9.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 359.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59
- Literature/Schematics (1)
- -- Original-techn. papers.
