• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 216

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

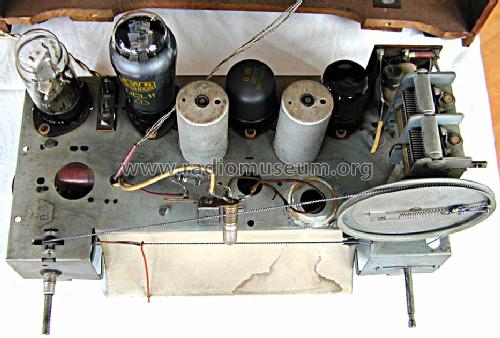

• Valves / Tubes
• UCH11 UBF11 UCL11 UY11 or U2410P

• Number of Transistors

• Semiconductors
• PL2410L

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

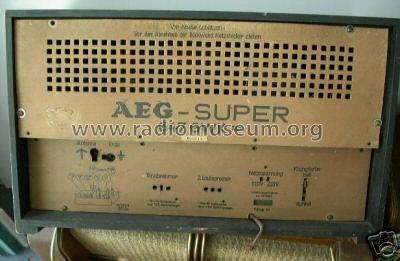

• Model: 647GWK - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 435 x 340 x 220 mm / 17.1 x 13.4 x 8.7 inch

• Notes
• Offenbar gibt es zwei Gehäuseausführungen.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 398.00 RM

• Source of data
• Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
