• Country
• Brazil

• Manufacturer / Brand
• AEG-Telefunken do Brasil S.A.; São Paulo

• Year
• 1981 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 350237

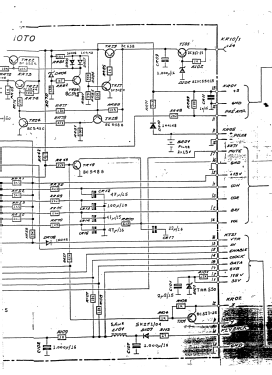

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 841 VHF/UHF - AEG-Telefunken do Brasil S.A.;

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.

• Other Models

• Here you find 5 models, 1 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
