• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110470

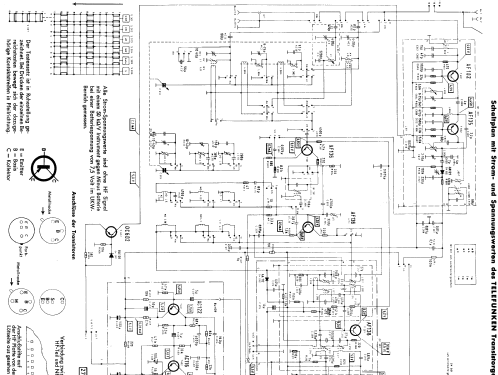

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF106 AF135 AF136 AF136 AF138 AF137 OC602 AC122 AC116 AC117 AC117

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Bajazzo TS3511 - AEG Radios Allg.Elektricitäts-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 190 x 90 mm / 12.6 x 7.5 x 3.5 inch

• Notes
• Siehe auchTelefunken Bajazzo TS-3511

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 499.00 DM

• Source of data
• Handbuch VDRG 1964/1965

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
