Gleichstrom-Eichzähler Form ELRc
AEG (Radios) Allg.Elektricitäts-Ges.
- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1925 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 244783
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Gleichstrom-Eichzähler Form ELRc - AEG Radios Allg.Elektricitäts-
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 190 x 330 x 190 mm / 7.5 x 13 x 7.5 inch
- Notes
-

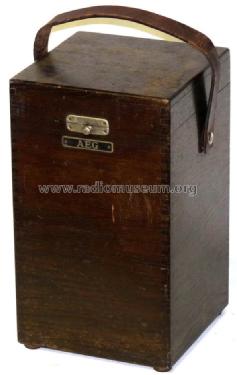

Tragbarer Gleichstrom-Eichzähler im Holzgehäuse. 2 x 5Amp., 2 x 110 und 110 Volt.
- Net weight (2.2 lb = 1 kg)
- 6.2 kg / 13 lb 10.5 oz (13.656 lb)
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
