• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 213

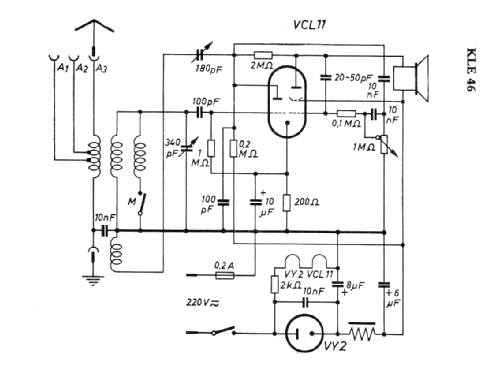

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• VCL11 VY2

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

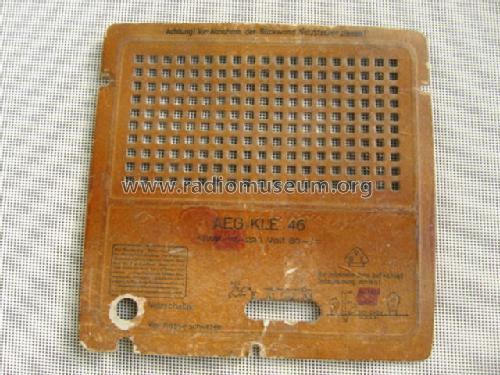

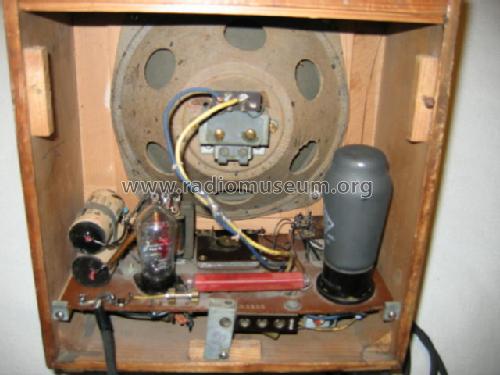

• Model: KLE46 - AEG Radios Allg.Elektricitäts-

• Dimensions (WHD)
• 250 x 265 x 120 mm / 9.8 x 10.4 x 4.7 inch

• Notes
• KLE = Kleinempfänger (DKE)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Other Models

• Here you find 843 models, 733 with images and 419 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
