• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1965/1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 26280

• Number of Transistors
• 6

• Semiconductors
• AC150 AC122 AC122 AC122 AC124 AC124

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

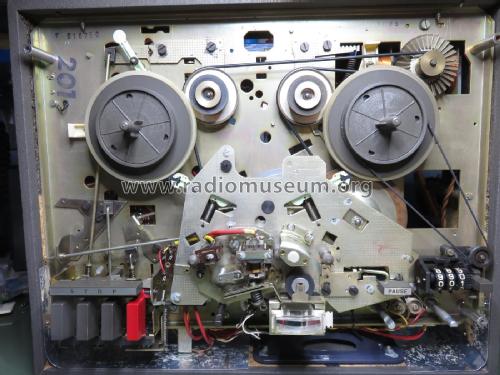

• Model: Magnetophon 201 - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 160 x 150 mm / 15.6 x 6.3 x 5.9 inch

• Notes
• Vierspur-Mono; Bandgeschwindigkeit 9,5 cm/s; Spulen-Ø 18 cm.
  Siehe auch: Telefunken Magnetophon 201.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966
