• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1962/1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24596

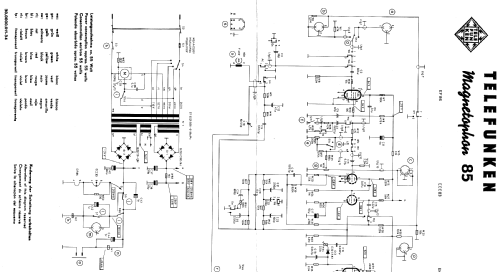

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 ECC83 ECC81 ECC83 EM71a EL95 EL95

• Number of Transistors

• Semiconductors
• E30C5 B250C65 B25-20-0,8

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Magnetophon 85 - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 455 x 200 x 411 mm / 17.9 x 7.9 x 16.2 inch

• Notes
• Zweispur; Bandgeschwindigkeiten 9,5/19 cm/s. Spulen-Ø 18 cm.
  Siehe auch: Telefunken Magnetophon 85.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 749.00 DM

• External source of data
• Erb

• Source of data

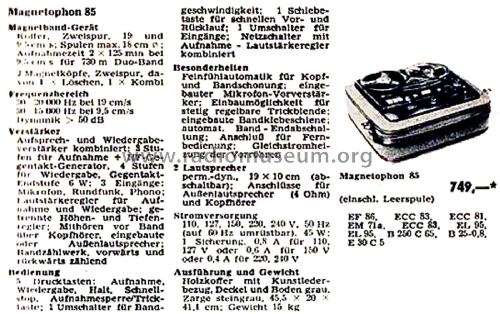

• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.
