• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1961–1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 24190

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC83 EL95 EM84

• Number of Transistors

• Semiconductors
• B250C65 E30C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

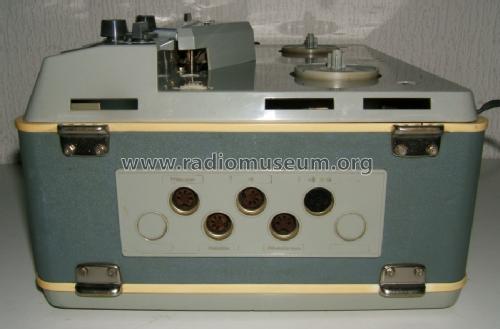

• Model: Magnetophon 95 - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 200 x 290 mm / 15.7 x 7.9 x 11.4 inch

• Notes
• Zweispur; 9,5/19 cm/s. Spulen-Ø 18 cm.
  Siehe auch: Telefunken Magnetophon 95.

• Net weight (2.2 lb = 1 kg)
• 10.8 kg / 23 lb 12.6 oz (23.789 lb)

• Price in first year of sale
• 539.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.
