• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1956/1957

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 21095

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EF86 ECC83 ECC81 EM71a

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder; Remote Control (with wire or wireless)

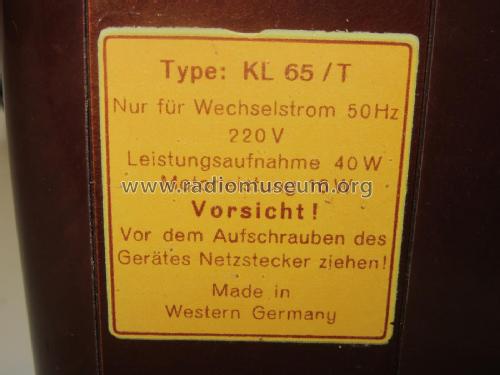

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org

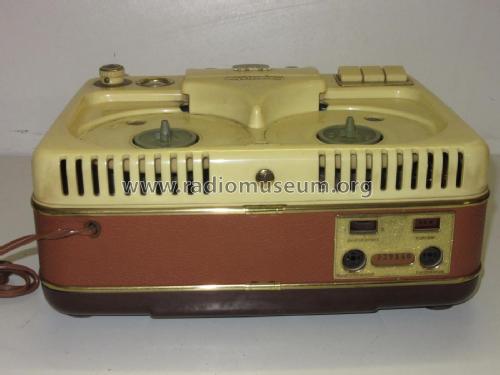

• Model: Magnetophon KL65T [EF86] - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 135 x 240 mm / 12.2 x 5.3 x 9.4 inch

• Notes
• Zweispur; Bandgeschwindigkeit 9,5 cm/s.; Spulen-Ø 13 cm.
  Baugleich mit Telefunken KL65T.

• Net weight (2.2 lb = 1 kg)
• 7.4 kg / 16 lb 4.8 oz (16.3 lb)

• Price in first year of sale
• 449.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
