Oszillograf PL.-Nr. 519 151
AEG (Radios) Allg.Elektricitäts-Ges.
- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1949 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 272678
- Number of Tubes
- 10
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszillograf PL.-Nr. 519 151 - AEG Radios Allg.Elektricitäts-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 260 x 310 x 460 mm / 10.2 x 12.2 x 18.1 inch
- Notes
-

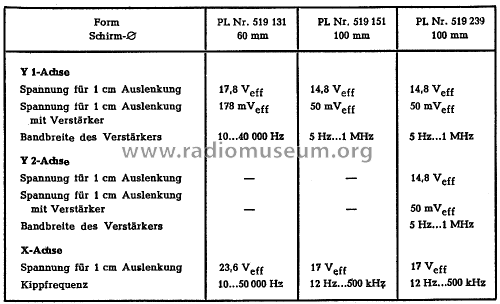

AEG Einstrahloszillograf PL.-Nr. 519 151
100 mm Schirmdurchmesser, eingebauter Messverstärker und Kippgerät.
- Mentioned in
- Hilfsbuch für Katodenstrahloszillografie, H. Richter, 1.Aufl., 1950, Franzis-Verlag
- Author
- Model page created by a member from D. See "Data change" for further contributors.
