• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166958

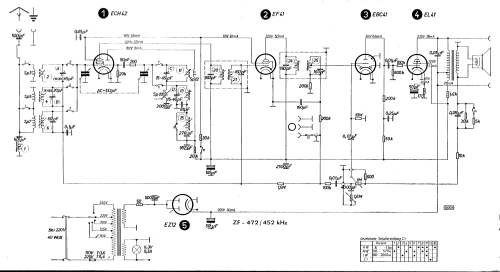

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM11 EZ12

• Main principle
• Superheterodyne (common); ZF/IF 472/452 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known. / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super 142W - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 320 x 220 mm / 18.5 x 12.6 x 8.7 inch

• Notes
• Export für die Schweiz?

• Author
• Model page created by Walter Baumann. See "Data change" for further contributors.
