• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 122

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1818 REN1821 RENS1823d U918 or U1218

• Main principle
• Superheterodyne (common); ZF/IF 232/500 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super-Geatron 303GL - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 336 x 350 x 230 mm / 13.2 x 13.8 x 9.1 inch

• Notes

• ZF für MW= 232kHz,
  ZF für LW= 500kHz.

  Parallelgerät zum Telefunken Nauen 330GL in anderem Gehäuse.
  Parallelgerät zum Siemens Sport-Super 36GL in anderem Gehäuse.

• Price in first year of sale
• 225.00 RM !

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in

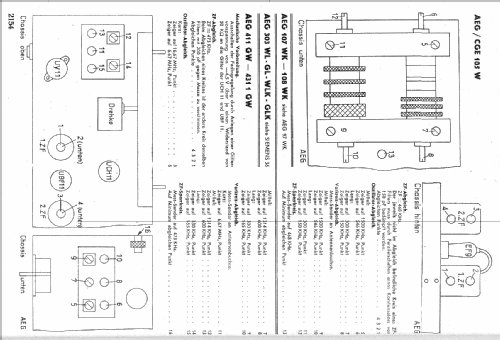

• AEG Hilfsbuch für den Funkhändler

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
