• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 EBC91 EM84 ECC83 ECL86 ECL86

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

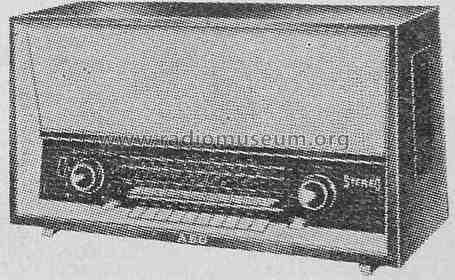

• Model: Tambour Stereo - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 360 x 260 mm / 24.8 x 14.2 x 10.2 inch

• Notes
• Dioden: 2× OA172. Stereo-NF-Verstärker, Gegentakt-Endstufe in Zweiweg-Technik (Gegentakt-Endstufe bei Mono-Betrieb, bei Stereo-Betrieb nur für tiefe Frequenzen).

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Price in first year of sale
• 595.00 DM

• Source of data
• Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb
