• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25602

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 ECC83 EM84 ELL80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

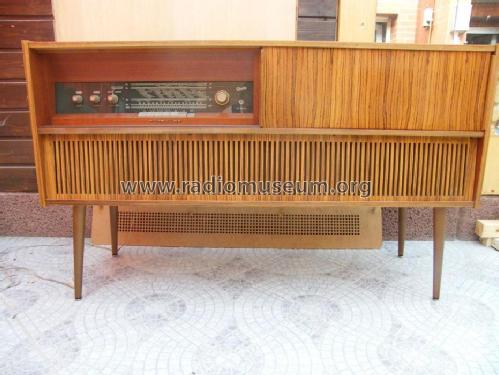

• Model: Potpourri M 41216M - Graetz, Altena Westfalen

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1215 x 725 x 390 mm / 47.8 x 28.5 x 15.4 inch

• Notes
• Rundfunk-Chassis = 1216;

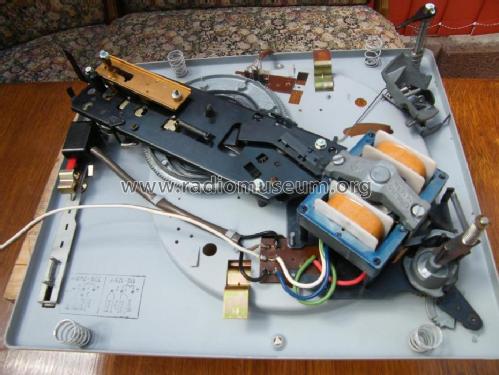

  Phono-Chassis = Perpetuum-Ebner PE66.

• Net weight (2.2 lb = 1 kg)
• 27 kg / 59 lb 7.5 oz (59.471 lb)

• Price in first year of sale
• 659.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
