• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26046

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• AF106 AF121 AF121 AF136 AF137 AF137 AF137 AC122 AC122 AC122 AC122 AC122 AC122 AC122 AC122 AC117 AC117 AC117 AC117 AC175 AC175 AD155 AD155 AD155 AD155 AA133 AA112 B30C2000/1200K6 B30C50 B30C250

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 12 W (15 W max.)

• Material
• Wooden case

• from Radiomuseum.org

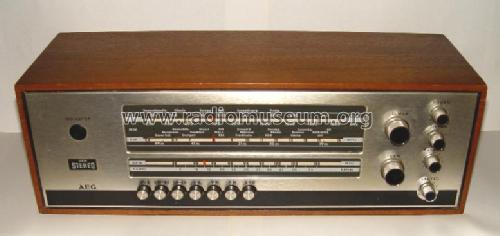

• Model: Tambourette 2650 - AEG Radios Allg.Elektricitäts-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 170 x 190 mm / 19.7 x 6.7 x 7.5 inch

• Notes

• Dioden-Typen teilweise mehrfach vorhanden.

  Drehbare Ferrit-Antenne.
  Stereo-NF-Verstärker mit 2 Endstufen je 6 W; zwei Lautsprecher-Boxen WB60 im Lieferumfang.
  Parallelgerät zum Telefunken Operette 2650.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 843 models, 733 with images and 419 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
