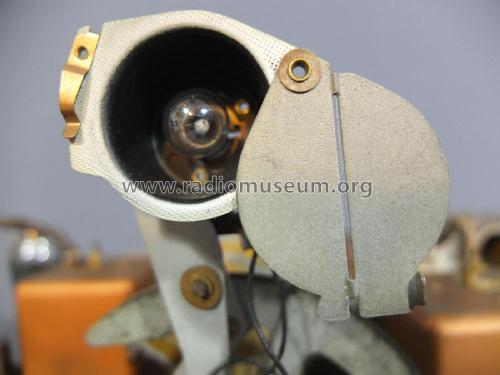

Ultra-Geadem 304WL
AEG (Radios) Allg.Elektricitäts-Ges.
- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 128

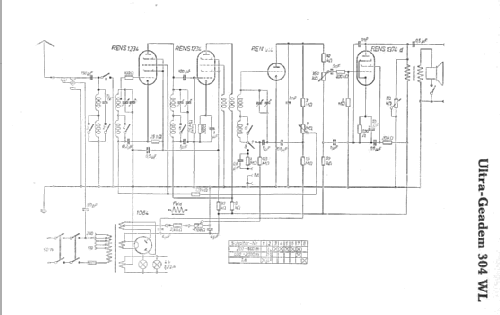

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultra-Geadem 304WL - AEG Radios Allg.Elektricitäts-
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 435 x 443 x 275 mm / 17.1 x 17.4 x 10.8 inch
- Notes
-
AEG Ultra-Geadem 304WL hat einem perm.-dyn. Lautsprecher. Die Paralleltypen haben jeweils elektrodynamische Lautsprecher-Systeme.
Siehe auch Telefunken T347aWL im identischen Gehäuse für den Export nach Schweden.
Parallelgerät zum Telefunken Admiral 346WL in anderem Gehäuse.
Parallelgerät zum Siemens Ätherzepp 47WL in anderem Gehäuse.
- Price in first year of sale
- 269.00 RM !
- Source of data
- Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Mentioned in
- AEG Hilfsbuch für den Funkhändler
- Literature/Schematics (1)

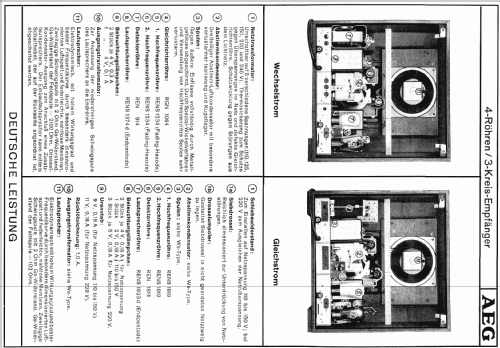

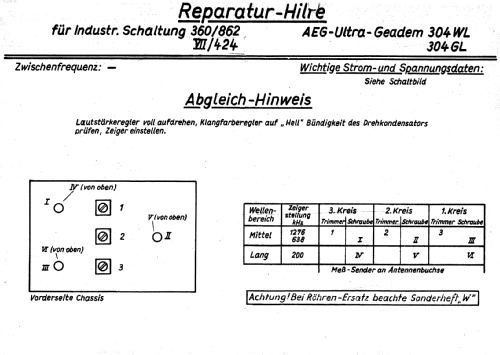

- -- Original-techn. papers.
- Literature/Schematics (2)
- -- Schematic (OTO- Schaltungen)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
