• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22199

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 ECC83 ECL82 EL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

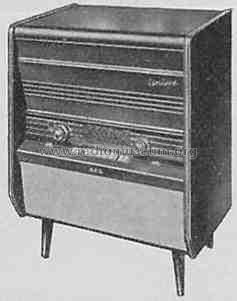

• Model: Univox K [dunkel] - AEG Radios Allg.Elektricitäts-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 635 x 815 x 420 mm / 25 x 32.1 x 16.5 inch

• Notes
• Stereo-NF-Verstärker mit 2 Endstufen je 4 W;
  Phono-Chassis = TFK TW501.

• Net weight (2.2 lb = 1 kg)
• 27.5 kg / 60 lb 9.2 oz (60.573 lb)

• Price in first year of sale
• 598.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Mentioned in
• - - Manufacturers Literature (AEG-Preisliste 1959/60)
