• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99518

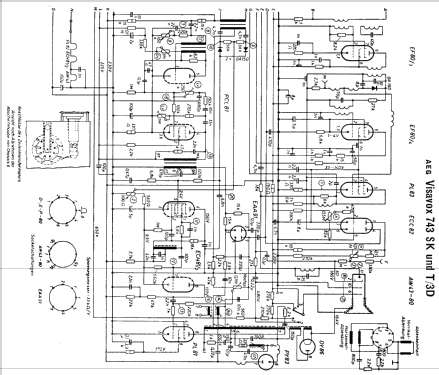

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• AW43-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Visavox FE743SK - AEG Radios Allg.Elektricitäts-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 540 x 920 x 500 mm / 21.3 x 36.2 x 19.7 inch

• Notes
• VHF.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,029.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
