• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99517

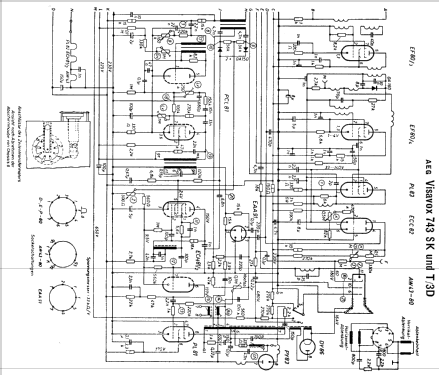

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• AW43-80 EF80 ECH81 PCC88 PCF82 PL83 ECC82 PABC80 PL82 PCL81 EAA91 PL81 PY83 DY86

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Visavox FE743T/3D - AEG Radios Allg.Elektricitäts-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 440 x 400 mm / 21.7 x 17.3 x 15.7 inch

• Notes
• Röhren teilweise mehrfach vorhanden.
  Germanium-Dioden: 2x OA150, OA160.
  Empfangsbereich VHF Band I und III.
  Das Chassis des AEG Visavox FE743T/3D ist vermutlich baugleich zu Telefunken Visiomat 43 T FE14

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Price in first year of sale
• 868.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
