• Country
• Germany

• Manufacturer / Brand
• AEG (Radios) Allg.Elektricitäts-Ges.

• Year
• 1980 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 263732

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 40200/200 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 24 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org

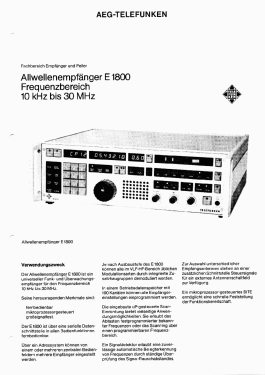

• Model: VLF-HF Empfänger E1800 - AEG Radios Allg.Elektricitäts-

• Shape
• Rack

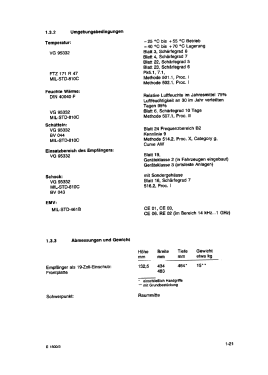

• Dimensions (WHD)
• 433 x 132 x 465 mm / 17 x 5.2 x 18.3 inch

• Notes

• Allwellenempfänger entsprechend Telefunken E1800, jedoch mit AEG-Logo. Bemerkungen / Technische Daten siehe dort!

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
