Vorwiderstand 3000 V
AEG (Radios) Allg.Elektricitäts-Ges.
- Country
- Germany
- Manufacturer / Brand
- AEG (Radios) Allg.Elektricitäts-Ges.
- Year
- 1950 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 350865

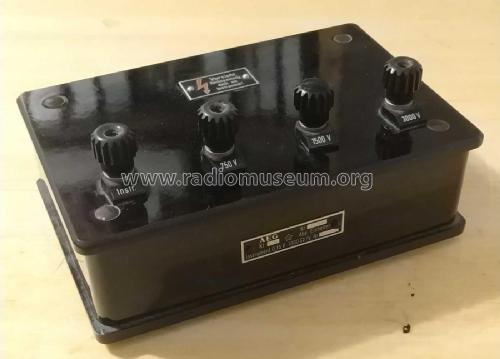

Gerät
Oberseite
Typenschild
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Vorwiderstand 3000 V - AEG Radios Allg.Elektricitäts-
- Dimensions (WHD)
- 195 x 93 x 130 mm / 7.7 x 3.7 x 5.1 inch
- Notes
-
Vorwiderstand für Instrument mit 0,15 V / 1000 Ω/V
Spannungsbereiche: 750 V / 1500 V / 3000 V
Kl.: 0,05
- Net weight (2.2 lb = 1 kg)
- 0.950 kg / 2 lb 1.5 oz (2.093 lb)
- Author
- Model page created by Michael Ludwigs. See "Data change" for further contributors.
