• Country
• Netherlands

• Manufacturer / Brand
• Aetherkruiser, Van der Heem NV; Den Haag

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88616

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Material
• Wooden case

• from Radiomuseum.org

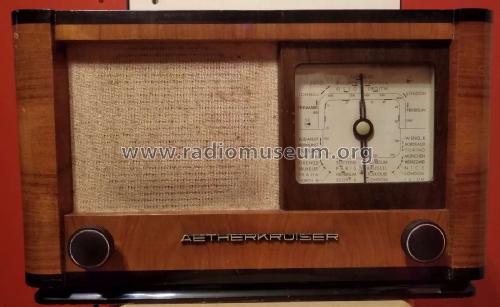

• Model: AK1481 - Aetherkruiser, Van der Heem NV

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 430 x 250 x 190 mm / 16.9 x 9.8 x 7.5 inch

• Notes

• Aetherkruiser models have the same chassis as Erres models. For AK1481 see Erres KY485.

• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
