• Country
• Netherlands

• Manufacturer / Brand
• Aetherkruiser, Van der Heem NV; Den Haag

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94624

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EF9 EBL1 1823

• Main principle
• Superheterodyne (common); ZF/IF 110 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

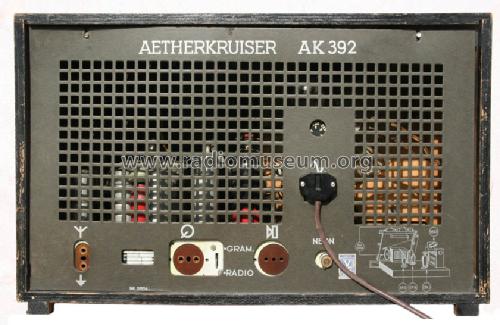

• Model: AK392 - Aetherkruiser, Van der Heem NV

• Shape
• Tablemodel, low profile (big size).

• Notes

• Aetherkruiser models have the same chassis as Erres models. For AK392 see Erres KY187.

• Price in first year of sale
• 155.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 41 models, 23 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Aetherkruiser, Van der Heem NV; Den Haag
