• Country
• Germany

• Manufacturer / Brand
• AFA; Hagen

• Year
• 1935 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 118484

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• N70/3 unknown_Tube unknown_Tube

• Wave bands
• - without

• Details
• Power: Charger for A-Batteries

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Vartax 3/6 - AFA; Hagen

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 206 x 430 x 223 mm / 8.1 x 16.9 x 8.8 inch

• Notes
• Umschaltbares Akku-Ladegerät für 1...3 / 4...6 Bleizellen bzw. 1...5 / 6...10 Stahlzellen. Max. 3 A Ladestrom.
  Zwei FeH-Röhren.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in

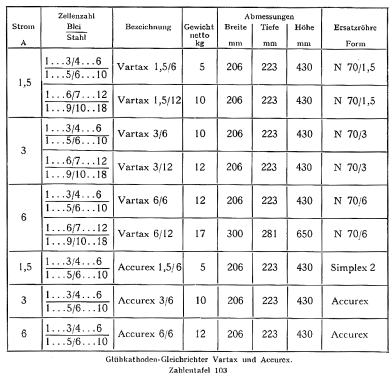

• AFA-Handbuch 1941

• Author
• Model page created by a member from D. See "Data change" for further contributors.
