Artone 14TS78T
Affiliated Retailers, Inc.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Affiliated Retailers, Inc.; New York (NY)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 194715
-
- Brand: Artone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Artone 14TS78T - Affiliated Retailers, Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Artone model 14TS78T is a 14" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 1-3067 and picture tube 14RP4A.
- Literature/Schematics (1)

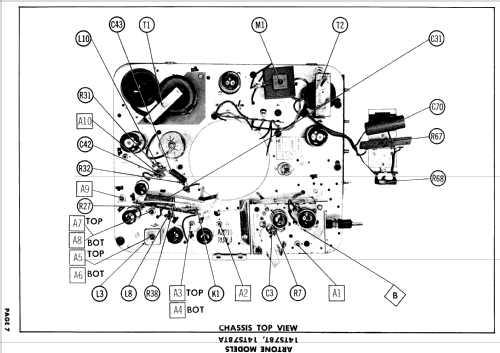

- Photofact Folder, Howard W. SAMS (Date 5-58, Set 400, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
