• Country
• United States of America (USA)

• Manufacturer / Brand
• Affiliated Retailers, Inc.; New York (NY)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 355913

• • Brand: Artone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6J6 or 6BH6 6J6 or 6AG5 or 6BC5 6J6 6AU6 6CB6 or 6AU6 6CB6 or 6AU6 6AL5 6AC7 12AU7 6AU6 6T8 6AQ5 6SN7GT 6J5 6AL5 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17BP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Artone 17CRR - Affiliated Retailers, Inc.;

• Shape
• Console with any shape - in general

• Notes

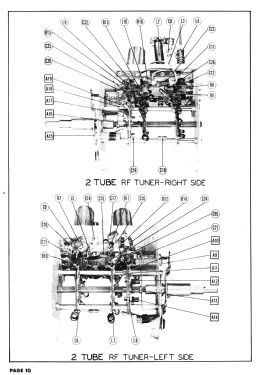

• Artone model 17CRR is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner TT-6 and picture tube 17BP4.



• Literature/Schematics (1)

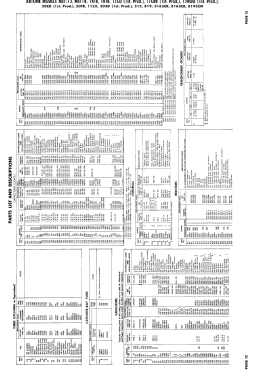

• Photofact Folder, Howard W. SAMS (Set 170, folder4, dated 6-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
