Artone 203D (2nd.Prod.)
Affiliated Retailers, Inc.; New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Affiliated Retailers, Inc.; New York (NY)
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 356188
-
- Brand: Artone

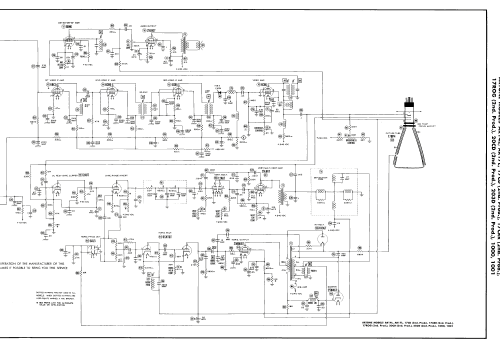

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6J6 6J6 6BC5 or 6AG5 6CB6 6CB6 6CB6 6BN6 25L6GT 12AU7 12AU7 25L6GT 6AL5 6SN7GT 25BQ6GT 25W4GT 1B3GT 17BP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Artone 203D - Affiliated Retailers, Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Artone model 203D is a 14” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with a VHF tuner and picture tube 17BP4.Speaker not specified, 2x selenium rectifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 172, folder 3, dated 7-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
