• Country
• Spain

• Manufacturer / Brand
• Afha España, S.A.; Barcelona

• Year
• 1975 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 247809

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AF114 AC125

• Power type and voltage
• Dry Batteries / 1 x 4,5 Volt

• Material
• Metal case

• from Radiomuseum.org

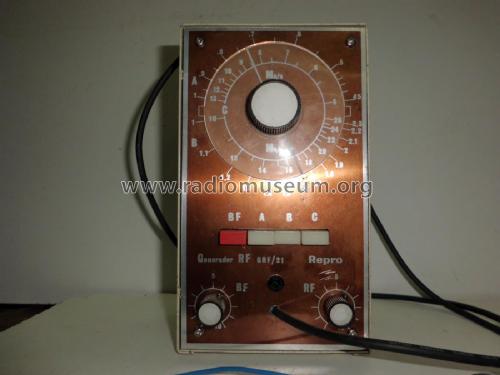

• Model: Generador RF GRF/21 - Afha España, S.A.; Barcelona

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 110 x 100 x 190 mm / 4.3 x 3.9 x 7.5 inch

• Notes

• Gama de frequncia:
  BF.-  330Hz
  AF.- 450 - 1000kHz
  1000kHz - 2600kHz
  2600kHz -     29 MHz
  Modulation AM

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Author
• Model page created by Juan Alvarez Alonso. See "Data change" for further contributors.
