• Country
• Italy

• Manufacturer / Brand
• AFHA Italia S.p.A., Milano

• Year
• 1971 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 167714

• Number of Transistors
• 2

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

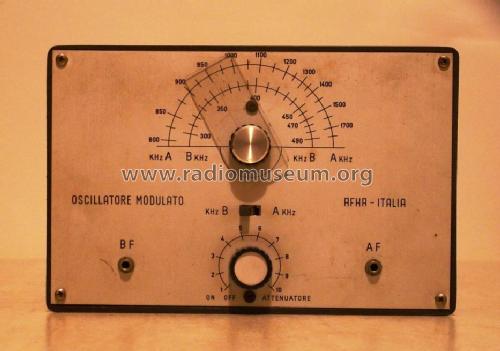

• Model: Oscillatore modulato - AFHA Italia S.p.A., Milano

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 130 x 55 mm / 7.9 x 5.1 x 2.2 inch

• Notes
• Oscillatore modulato costruito dall'allievo durante il corso per corrispondenza AFHA Elettronica-Radio-TV.

  Due gamme di frequenza AF:
  A da 800 a 1700 KHz;
  B da 300 a 490 KHz.
  Uscita AF modulata al 30% e regolabile con attenuatore potenziometrico.
  Uscita a BF a 450 Hz non regolabile.


• Net weight (2.2 lb = 1 kg)
• 0.380 kg / 0 lb 13.4 oz (0.837 lb)

• Mentioned in
• Documentazione Corso per corrispondenza AFHA

• Author
• Model page created by Enrico Puccini. See "Data change" for further contributors.
