• Country
• Spain

• Manufacturer / Brand
• Afha España, S.A.; Barcelona

• Year
• 1973 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 338221

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• AC125 AC125

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AA: 1 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

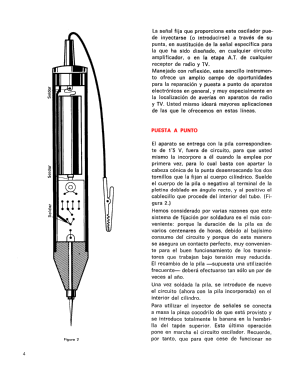

• Model: Punta Inyectora R07C 2992 - Afha España, S.A.; Barcelona

• Notes

• Afha España, S.A., Punta Inyectora R07C 2992

  Generador de señal cuadrada de 1.000 Hz, cuyos armónicos cubren hasta 30 MHz aproximadamente.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
