• Country
• Germany

• Manufacturer / Brand
• Ahemo-Werkstätten; Berlin-Charlottenburg:

• Year
• 1926 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 193431

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 328 329

• Wave bands
• - without

• Details
• Power: Charger for A-Batteries

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

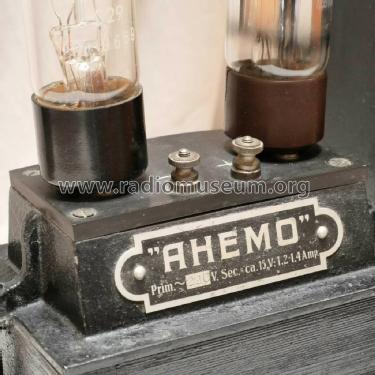

• Model: Ladegleichrichter He6 - Ahemo-Werkstätten; Berlin-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 145 x 235 x 112 mm / 5.7 x 9.3 x 4.4 inch

• Notes

• Der Ahemo-Ladegleichrichter He6 dient zum Laden von 1...6 Heizakkumulatorzellen mit einer Stromstärke von 1,3...1,4 A.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Price in first year of sale
• 55.00 RM

• Literature/Schematics (1)

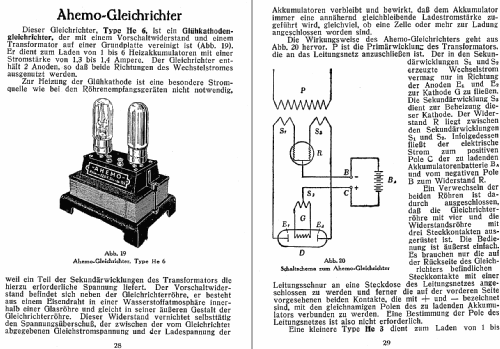

• Pfalzgraf-Broschüre, 1927

Beschreibung AHEMO-Fabrikate (ca.1926)

1897 KB
