Stereo Cassette Radio ST-801FS2
Aimor Electric Works, Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aimor Electric Works, Ltd.; Tokyo
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328780
- Number of Transistors
- 4
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 220 / D: 4 x 1.5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 10 cm = 3.9 inch
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo Cassette Radio ST-801FS2 - Aimor Electric Works, Ltd.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 170 x 130 mm / 15 x 6.7 x 5.1 inch
- Notes
-

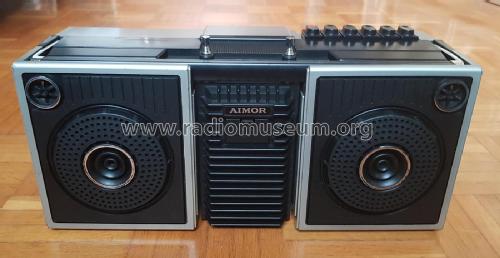

Portable stereo radio/cassette recorder.

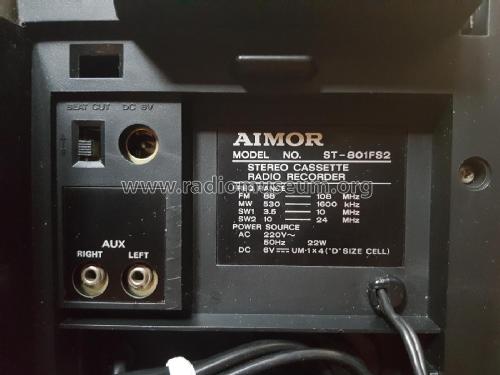

Frequency range: MW : 530 - 1600 kHz
SW1 : 3.5 - 10 MHz
SW2 : 10 - 24 MHz
FM : 88 - 108 MHz

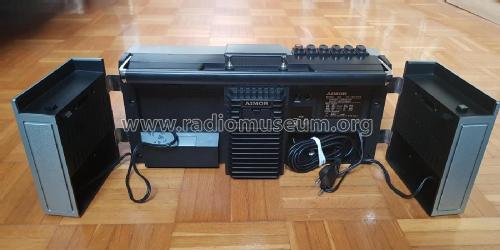

Fold-out detachable speakers, two microphone jacks, headphones jack, power jack for external 6V power supply, two whip antennas, two aux inputs, push-pull fine tuning knob.
Separate volume and tone controls for each channel.
Tape/radio, mono/stereo, AC/DC, and monitor switches.
Total width with folded out speakers 66 cm.
- Author
- Model page created by Mirko Bersani. See "Data change" for further contributors.
