- Country
- United States of America (USA)
- Manufacturer / Brand
- Airadio Inc.; Stamford
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 183148
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org

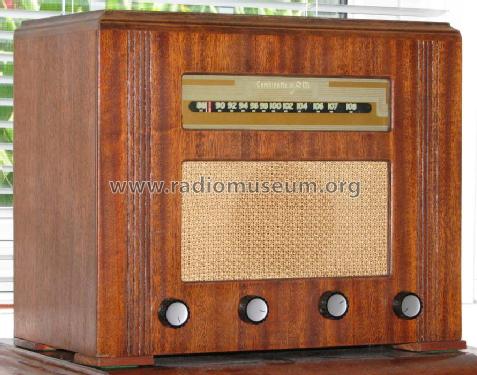

- Model: 3100 - Airadio Inc.; Stamford
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14 x 12 x 8 inch / 356 x 305 x 203 mm
- Notes
- Radio uses a selenium rectifier. Radio has an RCA jack to allow use of an external speaker instead of the built-in speaker.
- Net weight (2.2 lb = 1 kg)
- 9 lb 7 oz (9.438 lb) / 4.285 kg
- Source of data
- - - Data from my own collection
- Circuit diagram reference

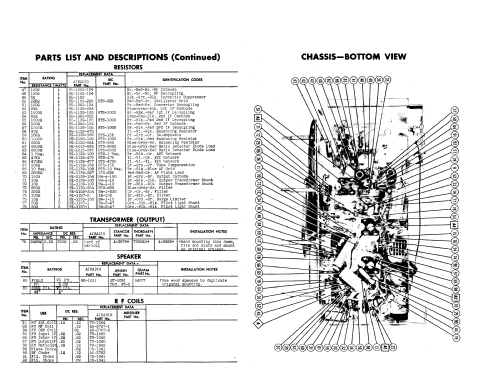

- Photofact Folder, Howard W. SAMS
- Literature/Schematics (4)
- Set 37, Date 3/48, Folder 487-1
- Author
- Model page created by Robert Higgins. See "Data change" for further contributors.
