H.F. Signal Generator 701
Airmec Ltd.; Perivale
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Airmec Ltd.; Perivale
- Year
- 1950 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 357620
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: H.F. Signal Generator 701 - Airmec Ltd.; Perivale
- Shape
- Tablemodel, with any shape - general.
- Notes
-
HF signal generator with these characteristics:
- Range: 30 kHz to 30 MHz in seven ranges.
- Frequency calibration accuracy: ± 1%
- Output level: Variable from 1 µV to 1 Volt. Additiional output terminal at 5 Volts
- Modulation: Internal at 1 kHz. External 30 Hz to 10 kHz. Depth variable 0 - 80%.
- Output and Frequency: Unaffected by load conditions and output over frequency range.
- Mentioned in

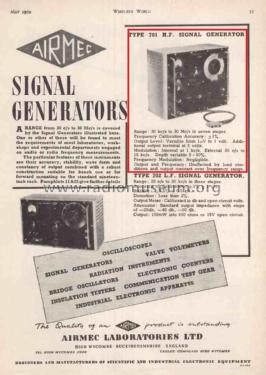

- Wireless World (The), London (WW, 79) (May 1950 page 33.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
