Airo Master Chest Model 60
Airo-Master Corp.; New York City, New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Airo-Master Corp.; New York City, New York
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31716
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 90 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Airo Master Chest Model 60 - Airo-Master Corp.; New York
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 21.5 x 10 x 11.5 inch / 546 x 254 x 292 mm
- Notes
-
Three dials (primary tuning control knobs)

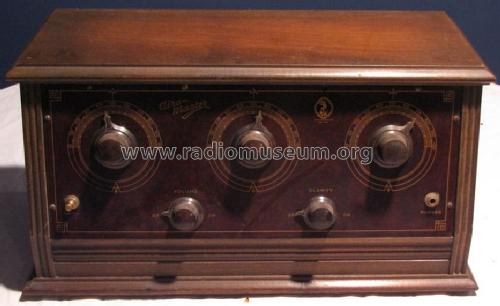

Airo-Master Chest Model 60 with drop down front.
- Net weight (2.2 lb = 1 kg)
- 22 lb (22 lb 0 oz) / 9.988 kg
- Price in first year of sale
- 60.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Mentioned in
- November, 1925 Radio Industry Electrical Record Supplement page 29
