• Country
• Australia

• Manufacturer / Brand
• Airzone (1931) Ltd.; Sydney

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164158

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

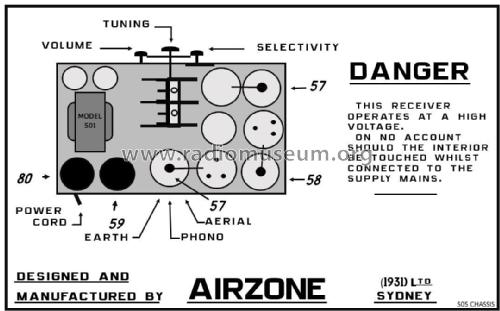

• Valves / Tubes
• 57 58 57 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 530 Ch= 505 - Airzone 1931 Ltd.; Sydney

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• Differs from model 540 only in cabinet styling.

• Price in first year of sale
• 25.00 Aus£

• Literature/Schematics (1)
• Radio & Elecrical Merchant 14/6/35 P18

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
