• Country
• Australia

• Manufacturer / Brand
• Airzone (1931) Ltd.; Sydney

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166367

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1C7G 1M5G 1M5G 1K7G 1L5G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

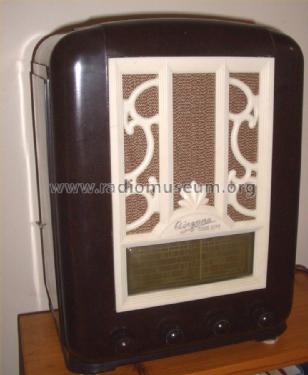

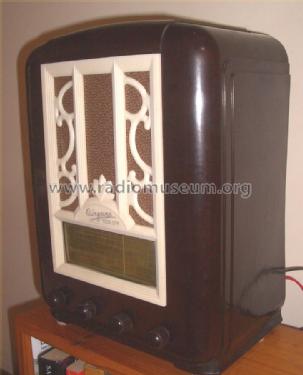

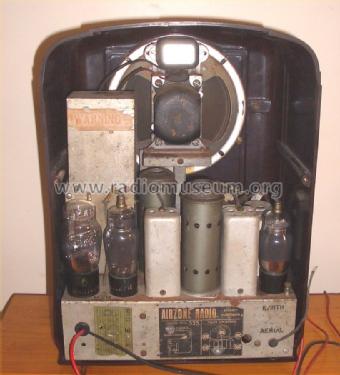

• Model: 586 Ch= 525M - Airzone 1931 Ltd.; Sydney

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• Uses vibrator power supply unit for +B.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. I I

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
