Concert Star 6541A
Airzone (1931) Ltd.; Sydney
- Country
- Australia
- Manufacturer / Brand
- Airzone (1931) Ltd.; Sydney
- Year
- 1940–1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 186901

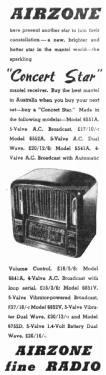

ABC Weekly, 5 April 1941, p.2
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200-230; 230-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Concert Star 6541A - Airzone 1931 Ltd.; Sydney
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- The 6G8G is reflexed as the I.F. amplifier and the 1st A.F. amplifier.
- Mentioned in
- -- Original prospect or advert (ABC Weekly, 5 April 1941, p.2)
- Literature/Schematics (1)
- Radio & Electrical Retailer, Australia (10/12/42 P12. Also in Mingay's index.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
