• Country
• Australia

• Manufacturer / Brand
• Airzone (1931) Ltd.; Sydney

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166470

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6D6 6A7 6D6 75 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 215; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

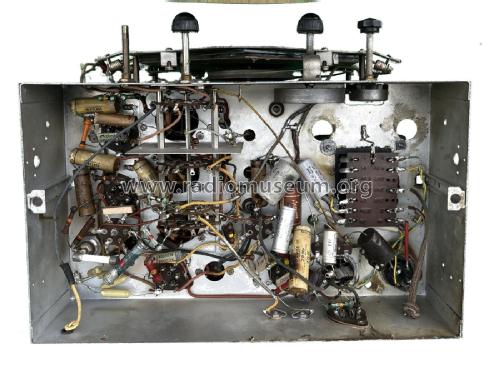

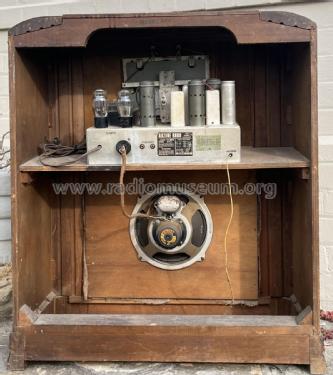

• Model: 656 Ch= 609 - Airzone 1931 Ltd.; Sydney

• Shape

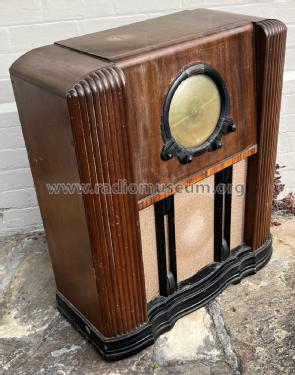

• Console, Lowboy (legs < 50 %).

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. I I

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
