• Country
• Australia

• Manufacturer / Brand
• Airzone (1931) Ltd.; Sydney

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182036

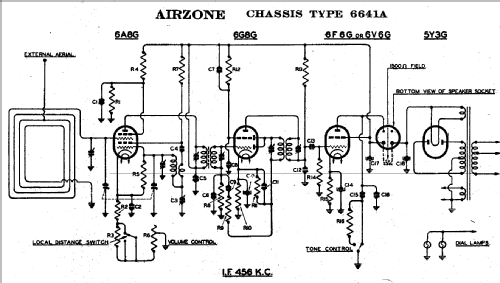

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A8G 6G8G 6F6G or 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Concert Star 6641A - Airzone 1931 Ltd.; Sydney

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• The 6G8G is reflexed as the I.F. and 1st A.F. amplifiers.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. IV

• Mentioned in
• -- Original prospect or advert (ABC Weekly, 5 April 1941, p.2)

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
