• Country
• Australia

• Manufacturer / Brand
• Airzone (1931) Ltd.; Sydney

• Year
• 1952–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193012

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AN7 6N8 6M5 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

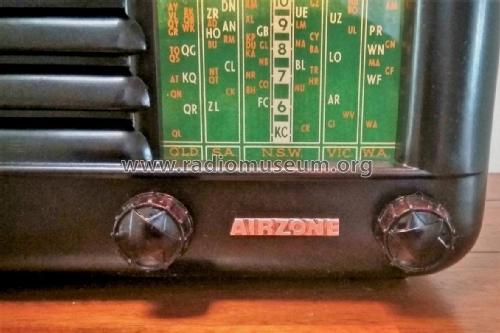

• Model: Imp A120 - Airzone 1931 Ltd.; Sydney

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Colours available in Walnut, Burgundy, Mottled Burgundy, Green, Ivory, Grey & Coral. Green, Ivory, Grey or Coral £22/18/9.

• Price in first year of sale
• 22.45 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XII

• Literature/Schematics (1)
• Australian Official Radio Service Manual AORSM (Volume 12, 1954, Page 40.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
