Cub 458 Ch= B408 tube 6J8G
Airzone (1931) Ltd.; Sydney
- Country
- Australia
- Manufacturer / Brand
- Airzone (1931) Ltd.; Sydney
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152188

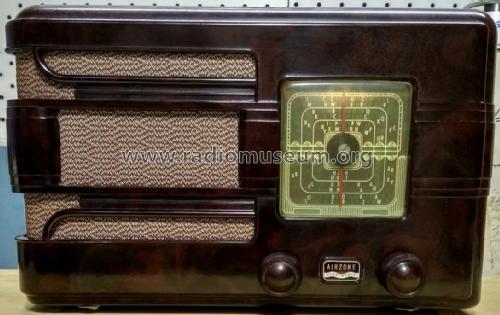

Reproduction Speaker cloth and Dial
Reproduction Speaker Cloth and Dial
Speaker cloth is a reproduction
1947 Airzone 458 in walnut.
Under chassis view after restoration.
RECONSTRUCTED LABEL. PLEASE MAKE COPYABLE.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Cub 458 Ch= B408 [tube 6J8G] - Airzone 1931 Ltd.; Sydney
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 263 x 168 x 130 mm / 10.4 x 6.6 x 5.1 inch
- Notes
- Available in cream cabinet for £18/4/6.
- Price in first year of sale
- 17.00 Aus£
- Literature/Schematics (1)
- The Merchandiser, July 1947.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 283 models, 131 with images and 154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Airzone (1931) Ltd.; Sydney
Collections
The model Cub 458 is part of the collections of the following members.
Forum contributions about this model: Airzone 1931 Ltd.;: Cub 458 Ch= B408
Threads: 1 | Posts: 5
Hello,
The circuit diagram that has been uploaded for this model is incorrect. Could you please remove it. I have drawn up a circuit for this radio by tracing the circuit but it is in .pdf file. Perhaps you could tell me how to upload it. I've tried to attached the file but I get an error, "unknown file type".
Regards,
Stuart
Stuart Irwin, 28.Nov.12
