Midget 551 Ch= 503

• Country
• Australia

• Manufacturer / Brand
• Airzone (1931) Ltd.; Sydney

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164255

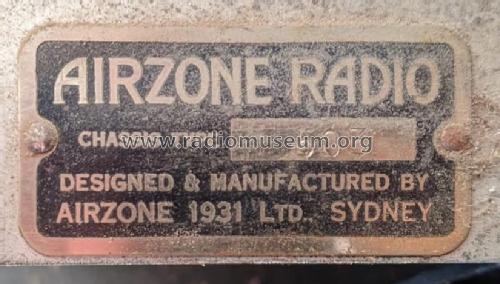

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6F7 78 77 41 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 1 AF stage(s); Anode bend detection

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Midget 551 Ch= 503 - Airzone 1931 Ltd.; Sydney

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 267 x 152 x 137 mm / 10.5 x 6 x 5.4 inch

• Price in first year of sale
• 14.00 Aus£

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.

• Other Models

• Here you find 283 models, 131 with images and 154 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
