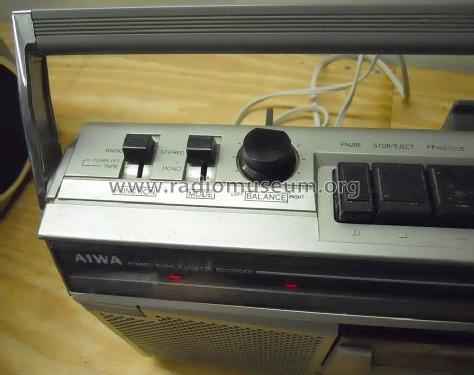

4 Band Stereo Radio Cassette Recorder TPR-901H

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 245594

 Technical Specifications

  • Number of Transistors
  • 17
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / AC 110-240 / D: 5 x 1.5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 6 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 4 Band Stereo Radio Cassette Recorder TPR-901H - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 424 x 230 x 140 mm / 16.7 x 9.1 x 5.5 inch
  • Notes

  • MW:   515 - 1650 kHz
    SW1:  2.1 -7.3 MHz
    SW2:  6.8 - 22.5 MHz
    FM:   87-109 MHz

    Mains supply range: 110 - 120,  220 - 240 V; 50 / 60 Hz.
    Power consumption: 12W.

    4 ICs , 17 Transistors, 8Diodes, 4 LED's



  • Net weight (2.2 lb = 1 kg)
  • 3.3 kg / 7 lb 4.3 oz (7.269 lb)
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
