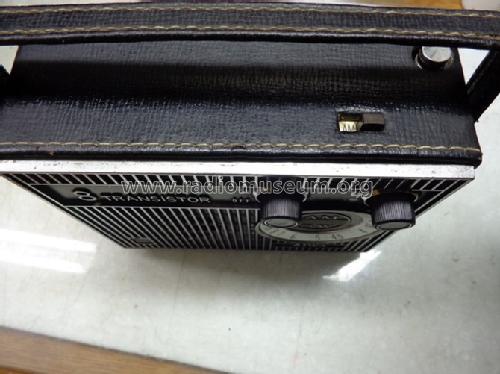

8 Transistor AR 854
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1968 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 209157
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8 Transistor AR 854 - Aiwa Co. Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 160 x 130 x 60 mm / 6.3 x 5.1 x 2.4 inch
- Notes
- 2 Band Portable 8 Transistor Radio.
- Net weight (2.2 lb = 1 kg)
- 1.130 kg / 2 lb 7.8 oz (2.489 lb)
- Literature/Schematics (1)
- Le grand livre de la TSF (Fiche N° : 18387)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
