• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354380

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AAA: 1 x 1.5 Volt

• Loudspeaker
• - only for Earphone!

• Power out
• 0.016 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

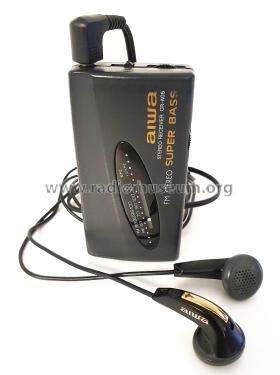

• Model: AM/FM Stereo Super Bass CR-A05MkII - Aiwa Co. Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 79 x 41.5 x 16 mm / 3.1 x 1.6 x 0.6 inch

• Notes

• Bands:

  • FM: 87.5 - 108 MHz
  • AM: 530 -1605 kHz (USA model 530 - 1710 kHz)

  Made in China

• Net weight (2.2 lb = 1 kg)
• 0.043 kg / 0 lb 1.5 oz (0.095 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
