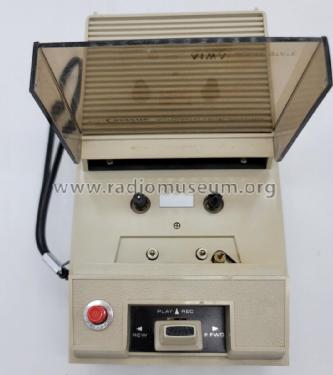

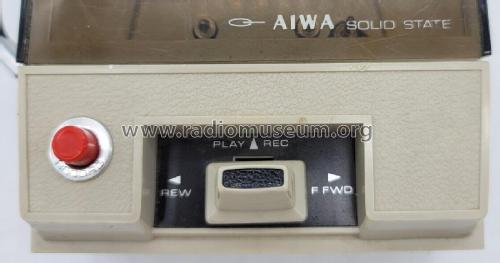

Cassette Tape Recorder TP739

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 351105

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Dry Batteries / C: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Tape Recorder TP739 - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 5 x 2.5 x 8.5 inch / 127 x 64 x 216 mm
  • Notes

  • 8-transistor, dual track, portable, toploading dual track, Cassette Tape Recorder Model Aiwa TP739

    • Automatic Level Control
    • Remote
    • MIC In
    • AUX In
    • Ext Speaker
    • Carrying Strip

    Similar to the Model TP736.

    The tape deck used in both is mechanically similar to Model TP737.


  • Net weight (2.2 lb = 1 kg)
  • 2 lb 8 oz (2.5 lb) / 1.135 kg
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
