• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 268779

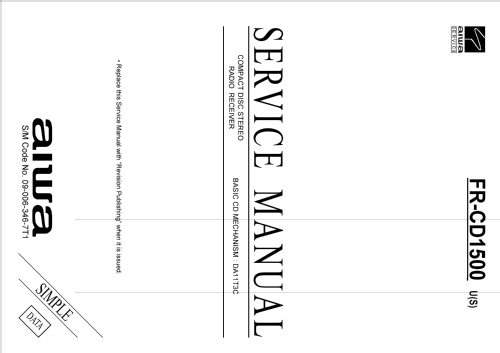

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Alternating Current supply (AC) / 120 & 1 x 9 Backup Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Compact Disc Stereo Radio Receiver FR-CD1500U - Aiwa Co. Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 150 x 210 x 170 mm / 5.9 x 8.3 x 6.7 inch

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.

• Other Models

• Here you find 930 models, 881 with images and 165 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
