FM-AM Stereo Tuner TX-70

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1983
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 240721

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop; ZF/IF 450/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM-AM Stereo Tuner TX-70 - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 330 x 71 x 200 mm / 13 x 2.8 x 7.9 inch
  • Notes

  • Aiwa Stereo Tuner Model TX-70.
    Frequency Range:
    FM 87,5 - 108 MHz
    AM 522 - 1611 kHz

    Power Source:
    H, HU Models
    - 120/220-240VAC Switchable, 50/60Hz
    - Semiconductors: 8x IC's, 5x FET's, 21x Transistors, 36x Diodes, 9x LED's
    G Model
    - 240VC, 50/60Hz
    -Semiconductors: 8x IC's, 5x FET's, 20x Transistors, 37x Diodes, 9x LED's
    Power Consumption max. 10 Watts.
    Made in Japan

    See also:
    Aiwa Stereo Tuner Model TX-70E (3Band - FM, AM, LW Stereo Tuner)






  • Net weight (2.2 lb = 1 kg)
  • 2.1 kg / 4 lb 10 oz (4.626 lb)
  • Mentioned in

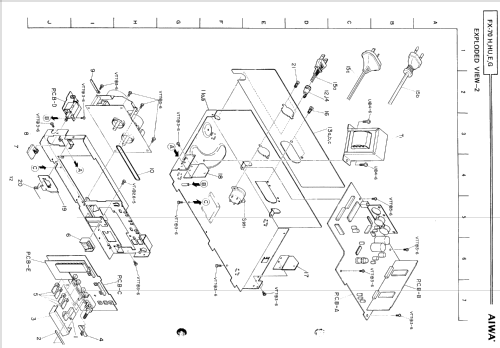

  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
